Showcase with two wings and rolling
shutter and two mobile hatches.
Use and characteristics
Installation on any thickness of panel through adaptable counterframe systems.
Interchangeable wings for positioning accessories
Performance
Thermal insulation up to Uw = 1.3
In accordance with EN 10077-1
Air permeability class 4
In accordance with EN 12207
Watertight seal class E9A
In accordance with EN 12208
Wind load resistance class C3
In accordance with EN 12211
Safety up to RC2
In accordance with DIN EN 1627
-
CE marking
in accordance with EN 14351-1
-
Environmental performance of the product

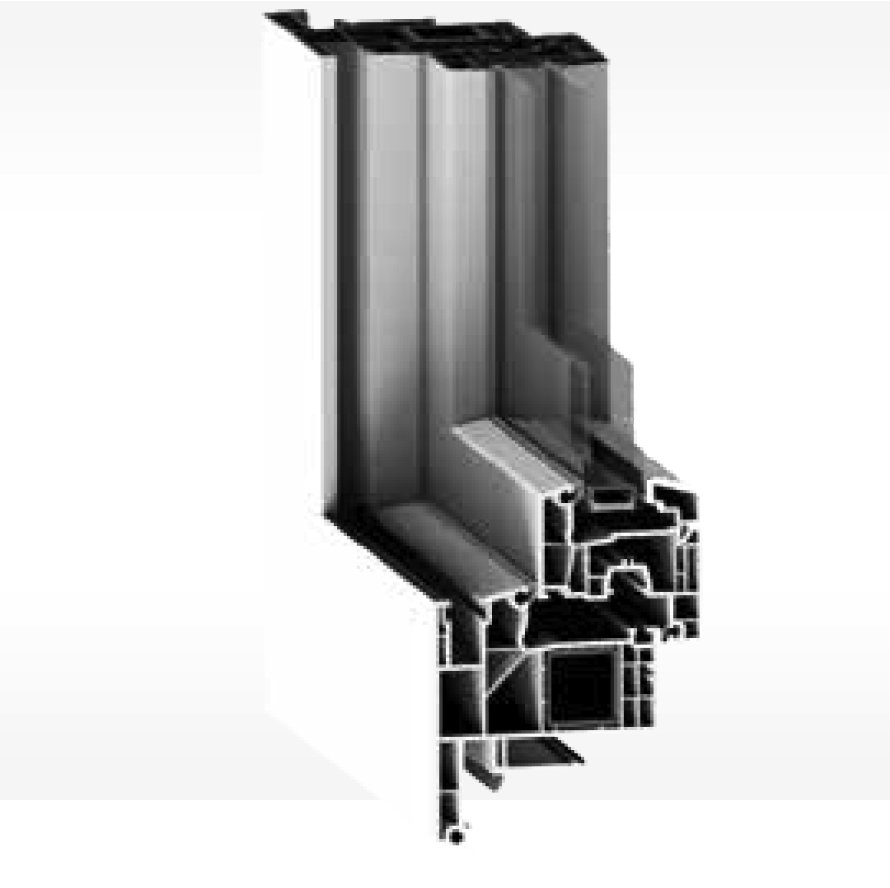

Extruded PVC profiles
Frame construction depth 70 mm
Structural depth of panel 70 mm
Glass thickness up to 42 mm-
Film covering in different colours and wood effect
-
Door with sandwich insulation panel
-
Shatterproof glass
-
Ventilation grating
